Dapr

DAPR #

  • Dapr is a portable, event-driven runtime that makes it easy for any developer to build resilient, stateless and stateful applications that run on the cloud and edge and embraces the diversity of languages and developer frameworks.
  • The Distributed Application Runtime (Dapr) provides APIs that simplify microservice connectivity.
  • Dapr’s sidecar take care of the complex challenges such as service discovery, message broker integration, encryption, observability, and secret management

Architecture #

Architecture

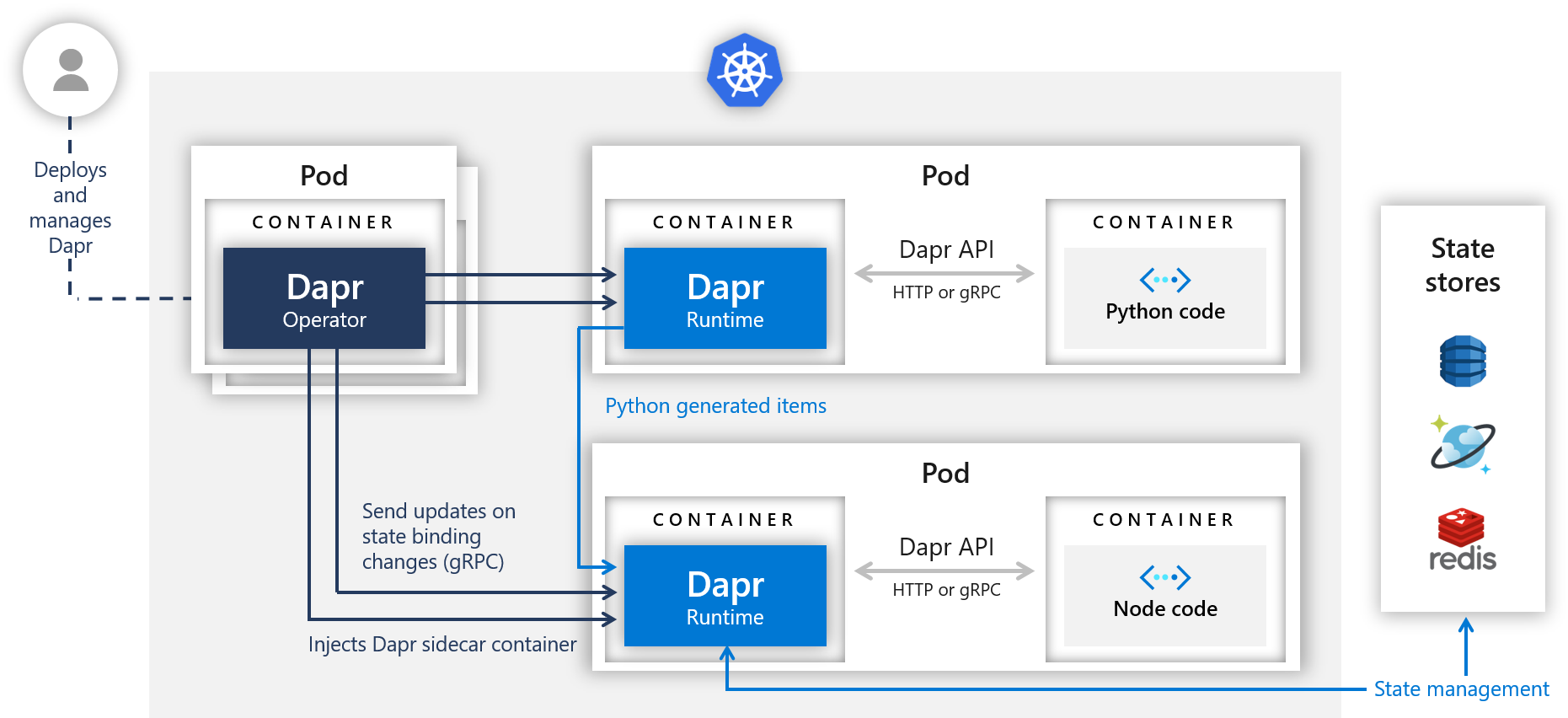

Sample Reference Application #

Reference Application Source

Local Installation (using Kubernetes) #

  • Step 1: Install DAPR CLI library. Click here to read more.
brew install dapr/tap/dapr-cli
  • Setup DAPR on K8S Cluster (creates a namespace). Click here for detailed instructions for different K8S setup (AKS, EKS, GKE).
dapr init --kubernetes --wait
  • Verify Installation
dapr status -k
kubectl get pods --namespace dapr-system

DAPR State Store & Pub/Sub #

  • DAPR needs a state store (you can use Redis, CosmosDB, DynamoDB, Cassandra, etc.)
  • Create and configure a state store with REDIS
helm repo add bitnami https://charts.bitnami.com/bitnami
helm repo update
helm install redis bitnami/redis
  • Create 2 files to install REDIS:redis-state.yaml, redis-pubsub.yaml (as per details here)
  • Install in K8S quickstarts/tutorials/hello-kubernetes/deploy
kubectl apply -f redis-state.yaml
kubectl apply -f redis-pubsub.yaml

DAPR with Docker (No K8S) #

  • Run DAPR with docker
dapr init
dapr run --app-id myapp --dapr-http-port 3500

These tell Dapr to use the local Docker container for Redis as a state store and message broker (~/.dapr/components)

  • Remove Dapr containers
dapr uninstall

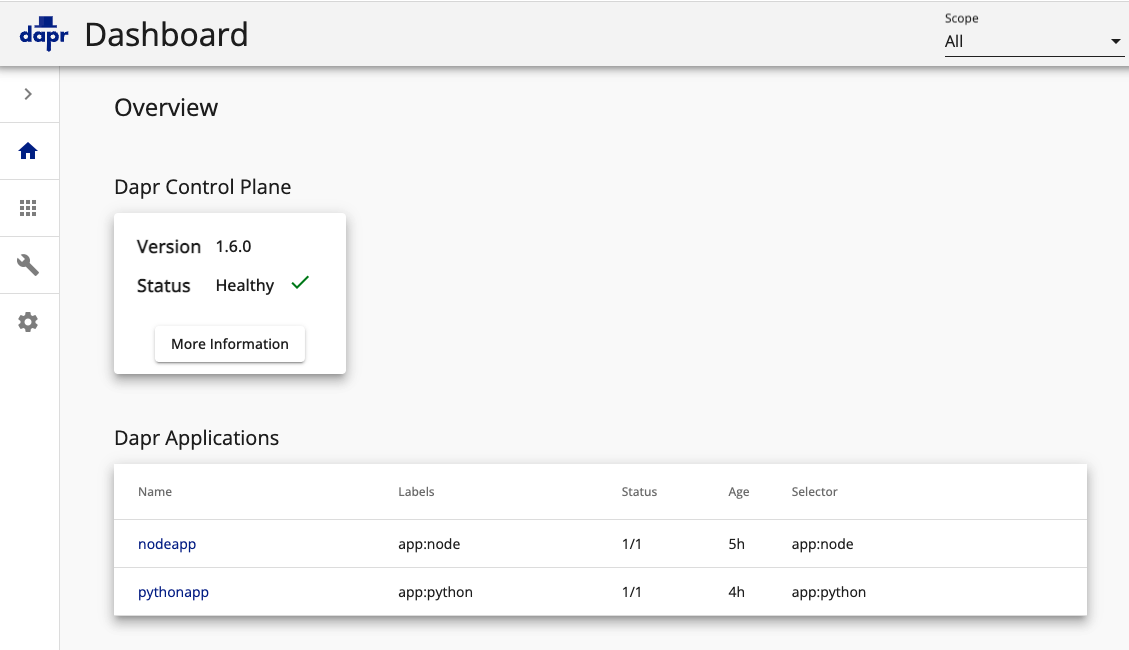

DAPR UI Dashboards #

  • Run to access DAPR UI Dashboard (-k for Kubernetes)
dapr dashboard -k -n <your-namespace>.

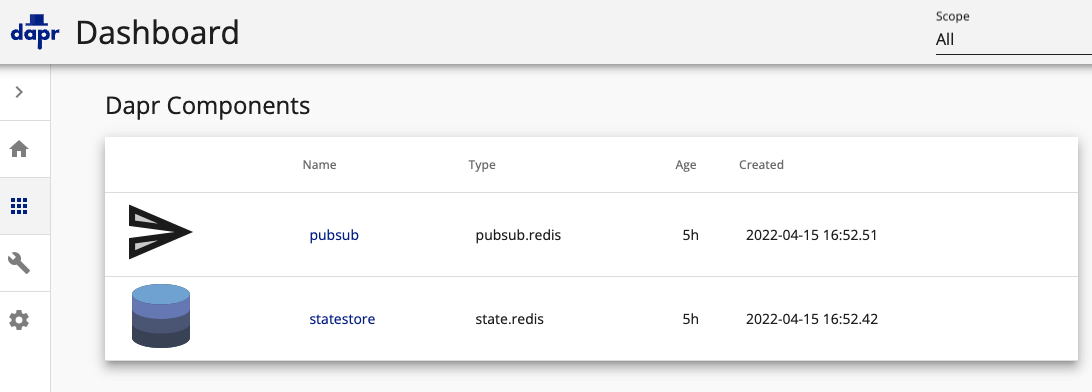

DAPR UI Dashboards DAPR State Management

Key Takeaways #

  • DAPR usage is more to provide developer decoupled runtime to address service-to-service communication, state management for stateful services, PUB/SUB for event-driven services, observability at fine-grained level, and related needs.
  • For example, you can also directly use REDIS in your application code for state management but DAPR runtime provides abstraction so that you don’t have to worry about integration with state store. You will simply interface with DAPR and if there is need to change from REDIS to cloud-provider managed state such as DynamoDB, AWS DynamoDB, it can happen without any code change.
  • More suitable for large-scale distributed applications using Microservices architecture

DAPR vs. Service Mesh #

  • DAPR is more developer centric and Service mesh is more infrastructure centric
  • If you need encrypted communication between services, need to use Service Mesh
  • Click here to read the official documentation Architecture
