Backstage #

• Backstage, developed by Spotify, is an open platform for building developer portals.
• You can centralize software catalog, microservices catalog, infrastructure tooling, documentation (ADRs), etc. in a single place.
• Click here to read the Spotify blog post providing overview.
• GitHub: https://github.com/backstage/backstage

Demo

• Online Demo: https://demo.backstage.io

Local setup #

• Guide: https://backstage.io/docs/getting-started/
• Crate a new backstage app using npx:

npx @backstage/create-app
yarn dev

• Local URL: http://localhost:3000
• Setting up database:

brew install postgresql
brew services restart postgresql@14 or /usr/local/opt/postgresql@14/bin/postgres -D /usr/local/var/postgresql@14

#Login in local postgresql
psql postgres -- to check postgres connection
CREATE USER backstage WITH PASSWORD 'secret' CREATEDB LOGIN

• Update configuration to use database:

yarn add --cwd packages/backend pg

• Update app-config.yaml:

 database:
    #client: better-sqlite3
    #connection: ':memory:'
    client: pg
    connection:
      host: 'localhost'
      port: 5432
      user: backstage
      password: ****

Key Plugins #

A plugin might needs to be installed on frontend as well as backend (NodeJS) applications.

• TechDocs
• SonarQube
• Jenkins
• Google Lighthouse
• ADR
• ADR Backend
• Cost Insights
• Sometimes plugin installation does not work. Use below:

yarn install --check-files
yarn tsc

Configuring Sonar #

• Install Sonar Frontend Plugin
• Install Sonar Backend Plugin

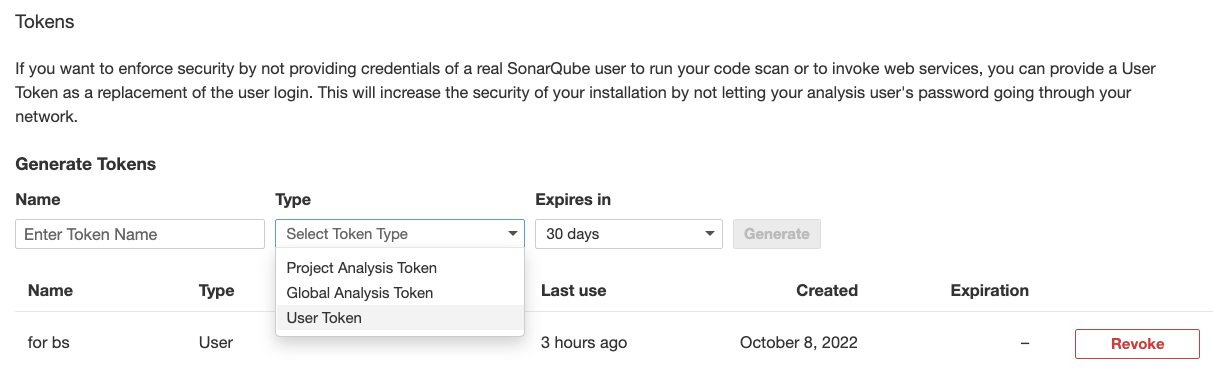

• Generate User Token from Sonar (Login Required): My Account -> Security (snapshot below)
  • Sonar API works without any password if you have the user token
• Ensure that plugin got installed correctly by running following - it should be in :

yarn tsc
find . -name '*sonar*'

• You should see following files:

./node_modules/@backstage/plugin-sonarqube
./node_modules/@backstage/plugin-sonarqube-backend
./packages/backend/src/plugins/sonarqube.ts

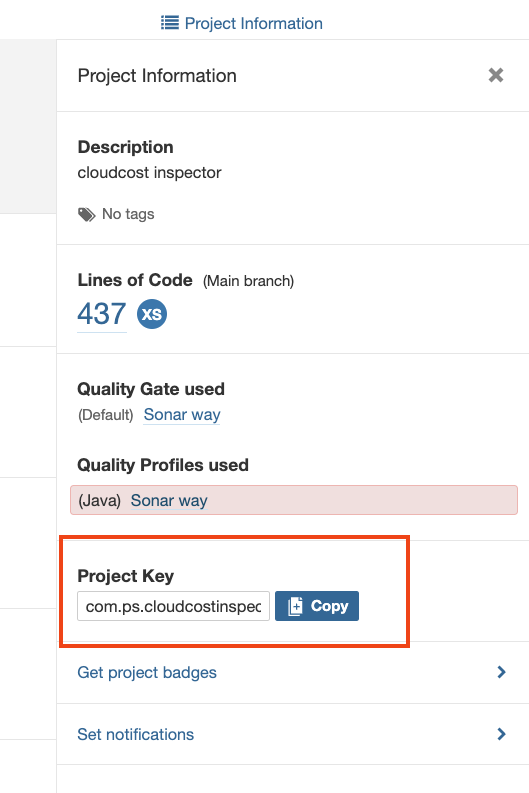

• Get the Sonar Project Key from Dashboard -> Project -> Project Information (see below)
• Update sonar settings in app-config.yaml:

sonarqube:
  instances:
    - name: default
      baseUrl: http://localhost:9000
      # API Key is the user token generated from Sonar
      apiKey: ************

• Put the configuration in your project catalog-info.yaml:

  annotations:
    backstage.io/techdocs-ref: dir:.
    jenkins.io/job-full-name: "devlocal:cloudcost-inspector"
    sonarqube.org/project-key: "com.ps.cloudcostinspector:CloudCostInspector"

Configuring TechDocs #

• TechDocs is Spotify’s homegrown docs-like-code solution built directly into Backstage.
• It uses MkDocs as the underlying engine as static site generator.
• You can generate documents outside the Backstage (separate CI/CD)
• Detailed instructions are here:
• TechDocs configuration options

brew install graphviz
brew install plantuml
pip install mkdocs
pip install mkdocs-techdocs-core==1.1.7
techdocs-cli serve --no-docker --for testing docs

Configure Lighthouse #

• You need to install Lighthouse Plugin
• Lighthouse Audit Service is a separate Microservice, created by Spotify. This needs to run separately as a container. See instructions here.

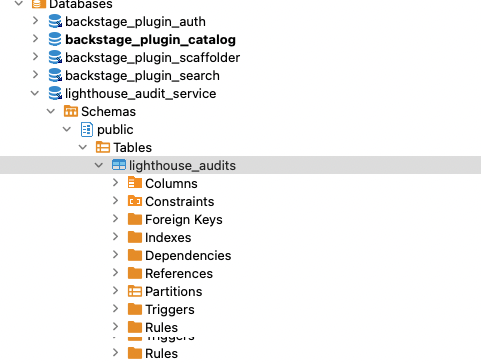

• You need to create a DB Schema in PostgreSQL (see below diagram), and Run Lighthouse audit service
• Backstage URL: http://localhost:3000/lighthouse
• the sidebar is managed inside packages/app/src/components/Root/Root.tsx
