OpenFaaS

OpenFaaS #

Context #

  • OpenFaaS makes it easy for developers to deploy event-driven functions and microservices to Kubernetes without repetitive, boiler-plate coding.
  • OpenFaaS Pro is a commercially licensed distribution of OpenFaaS with additional features, configurations and commercial support from the founders.
  • Supports Opensource framework avoiding vendor lock-in
  • Write functions in any language and package them in Docker/OCI-format containers
  • Supports PLONK (Prometheus, Linkerd/Linux, OpenFaas, NATS, K8S) technology stack: Architecture Layer
  • Conceptual flow: Flow

Local setup #

  • Installed Multipass on MAC (instead of using Docker, it is lightweight). Test Multipass using:
multipass launch --name foo
multipass exec foo -- lsb_release -a
multipass list
  • Create a Cloud Config File and replace the SSH Key:
curl -sSLO https://raw.githubusercontent.com/openfaas/faasd/master/cloud-config.txt
cat ~/.ssh/id_rsa.pub
  • Replace ssh_authorized_keys with above SSH Key
  • Launch faasd with Multipass:
cat cloud-config.txt | multipass launch --name faasd --cloud-init -
multipass info faasd
  • Launch the console:
export IP=$(multipass info faasd --format json| jq -r '.info.faasd.ipv4[0]')
ssh ubuntu@$IP "sudo cat /var/lib/faasd/secrets/basic-auth-password" > basic-auth-password
export OPENFAAS_URL=http://$IP:8080
  • Username is admin and password is in the basic-auth-password file
  • Deploy a sample serverless function:
cat basic-auth-password | faas-cli login -s
faas-cli store deploy figlet --env write_timeout=1s
echo "faasd" | faas-cli invoke figlet

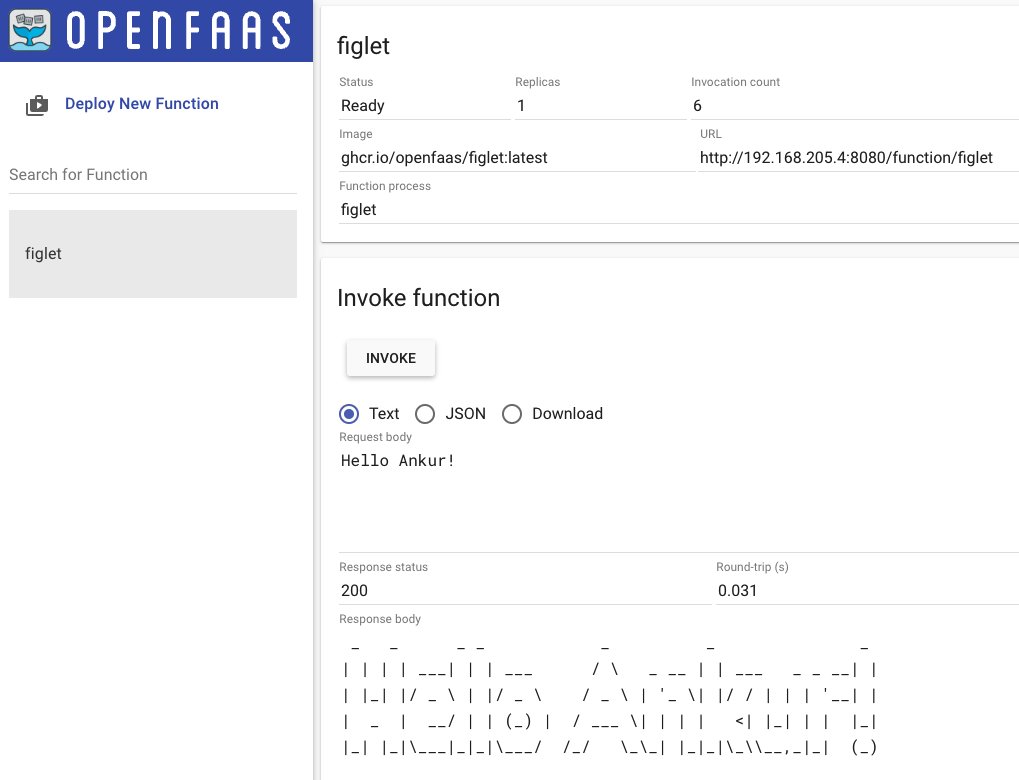

OpenFaas Console
